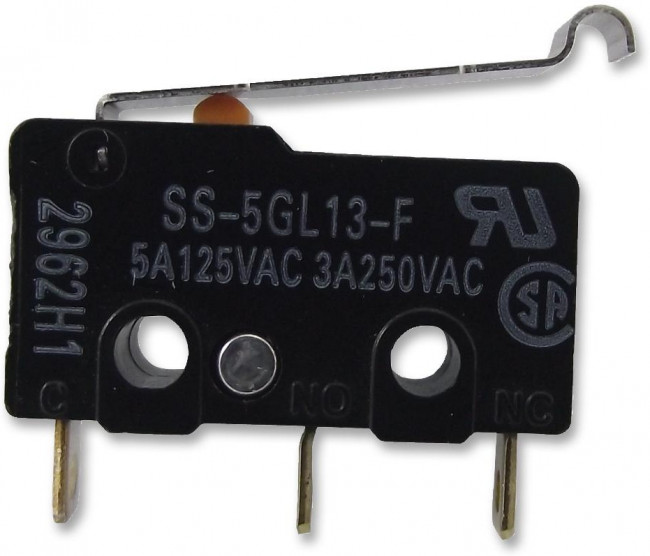

SS-5GL13-F, Switch Snap Action N.O./N.C. SPDT Simulated Hinge Lever 5A 250VAC 0.16N Screw Mount Solder

The Omron SS series are subminiature basic switches. These switches offer high reliability and security. A variety of models are available with operating force ranging from low to high. • Switching capacity of 10.1A at 250VAC, 5A at 125VAC, 0.1A at 30VDC• Pin plunger, hinge, long hinge, simulated roller, hinge roller lever actuators available• Solder, quick connect, PCB terminals available• Operating force is 0.06N, 0.12N, 1.47N, 0.49N, 0.25N, 0.16N, 0.08N, 0.39N based on ordering• SPDT, SPST-NC, SPST-NO contact configuration• Two split springs ensure a high stability and durability
