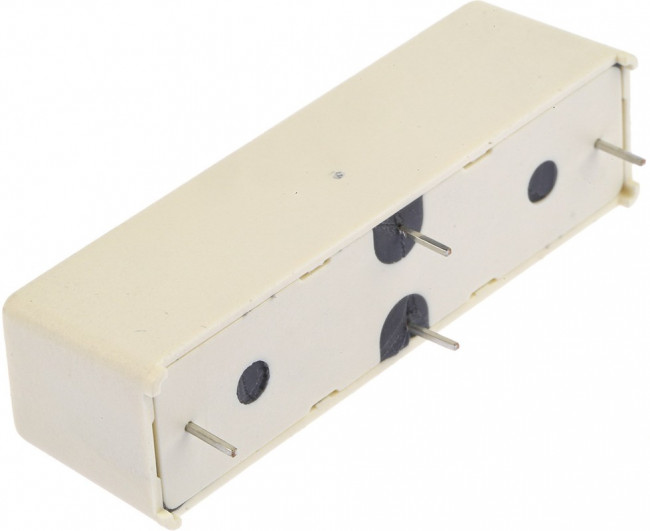

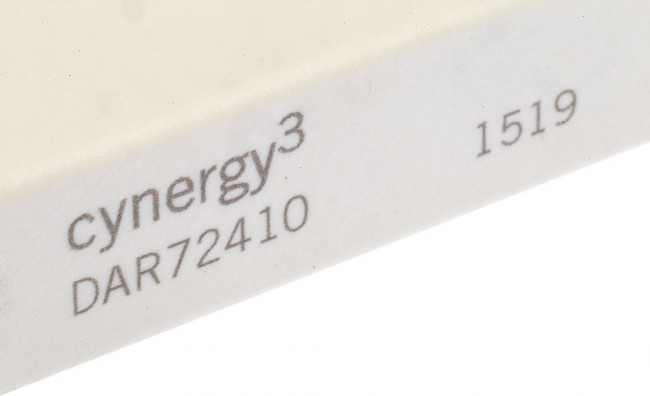

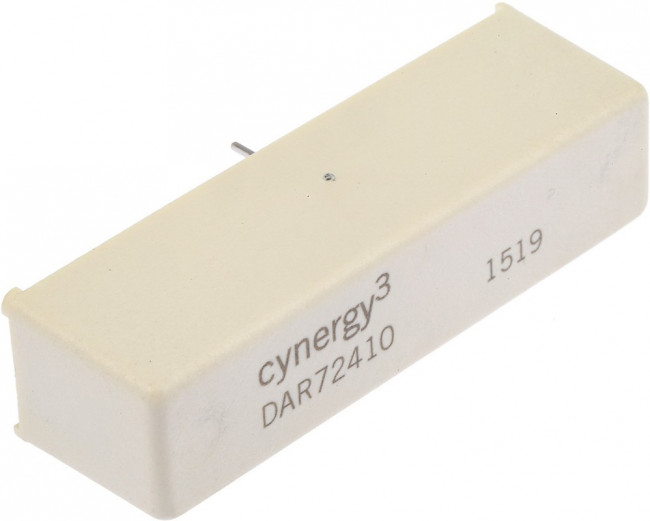

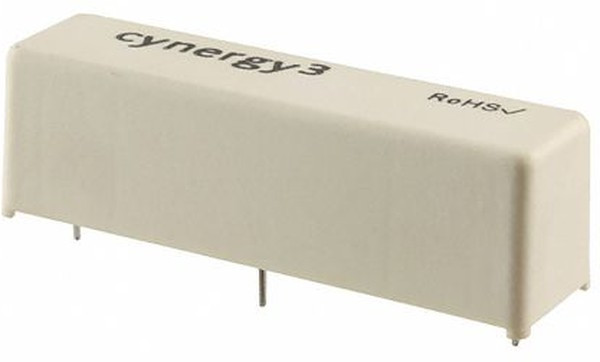

Relays\Reed RelaysThese high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies.
Информация о производителе
Производитель
Sensata-Cynergy3
Бренд
Sensata-Cynergy3
Основные
coil current
30.7mA
coil resistance
780 Ohms
coil type
Non Latching
coil voltage
24VDC
contact configuration
SPST
contact form
SPST-NO (1 Form A)
contact material
Rhodium (Rh)
contact rating (current)
3A
contact resistance
50 mΩ
Дата загрузки
14.04.2024
eccn
EAR99
htsus
8536.41.0030
isolation coil to contact
17kV
категория
Кнопки, переключатели, разъемы, реле/Реле
life
100000 Operations
maximum operating temperature
+70°C
maximum switching current ac
3 A
maximum switching current dc
3 A
maximum switching power dc
50 W
maximum switching voltage ac
1000V
maximum switching voltage dc
1000V
minimum operating temperature
-20°C
moisture sensitivity level (msl)
1 (Unlimited)
mounting type
Through Hole
must operate voltage
20 VDC
must release voltage
4 VDC
number of poles
1
operate time
3ms
operating temperature
-20В°C ~ 70В°C
operating temperature range
-20 →+70°C
operating time including bounce
3ms
package
Tray
партномер
8006985749
reach status
REACH Unaffected
relay switching classification
General Purpose Relay
release time
2ms
rohs status
ROHS3 Compliant
series
DA ->
switching voltage
1000VAC, 1000VDC - Max
terminal type
PCB Pin
termination style
PC Pin
