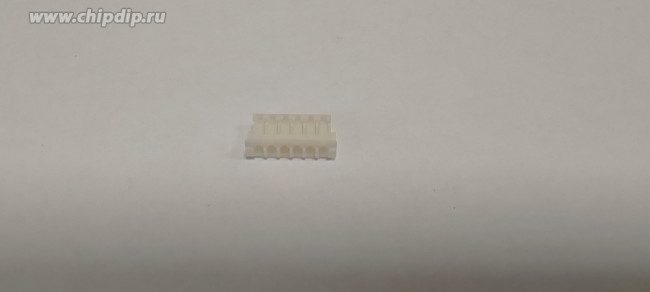

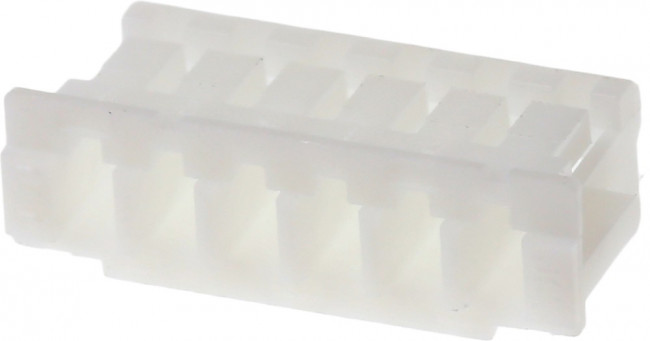

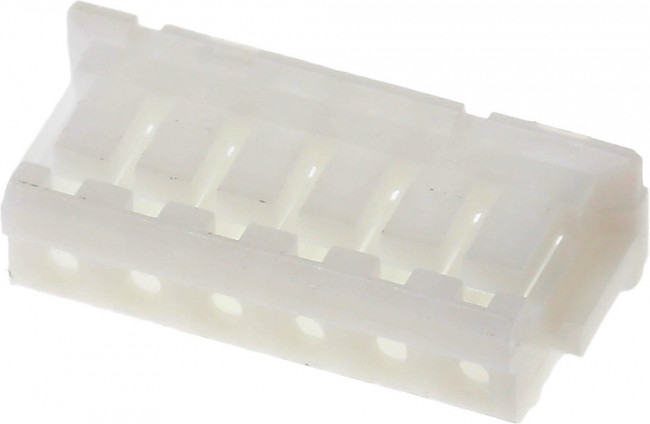

ZHR-6

ЭлектроэлементCONNECTOR HOUSING, 6WAY; Pitch Spacing:1.5mm; No. of Contacts:6Contacts; Gender:Receptacle; Product Range:ZH Series; Contact Termination Type:-; No. of Rows:1Rows; Contact Plating:-; Contact Material:-; SVHC:No SVHC (27-Jun-2018); Approval Bodies:CSA, UL; Colour:Natural White; Contact Resistance:20mohm; Current Rating:1A; External Length / Height:5.6mm; Flammability Rating:UL94V-0; For Use With:SZH-002T-P0.5 Crimp Contacts; Insulation Resistance:500Mohm; Material:Nylon; No. of Positions:6Ways; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Voltage Rating V DC:50V; Voltage Rating VAC:50V; Withstand Voltage:500V
