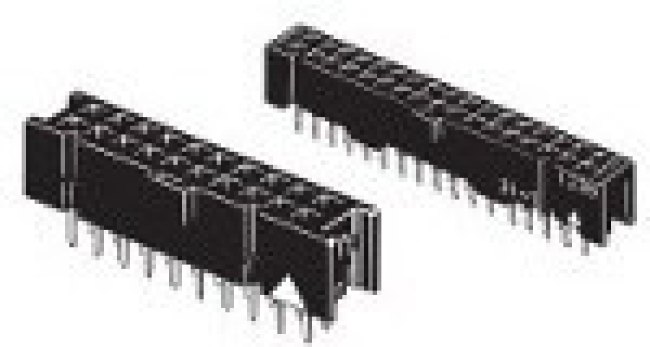

XG4H-5031, Rectangular MIL Spec Connectors BtoB Socket 50Pin Straight 1Polarize

Оставить отзыв
В избранноеВ сравнение
Артикул: XG4H-5031
Кнопки, переключатели, разъемы, реле Разъемы Штыревые и гнезда Omron XG4H-5031, Rectangular MIL Spec Connectors ...
Информация о производителе
ПроизводительOmron
БрендOmron
Основные
automotiveNo
2 110
+
Бонус: 42.2 !
Бонусная программа
Итого: 2 110
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\MIL-Spec / MIL-Type\Rectangular MIL Spec ConnectorsEV AC Charging SolutionsOmron Electronics offers electronic components for electric vehicle (EV) AC charging applications. With the increasing demand for EVs worldwide, the charging infrastructure is also expanding. This includes the number of EV charging stations in homes and cities. There is a growing trend to develop EV chargers with high-capacity output to achieve shorter charging times. Omron EV AC charging components are engineered with precision to help manufacturers reach that goal.
Информация о производителе
ПроизводительOmron
БрендOmron
Основные
automotiveNo
body orientationStraight
contact gender:Socket(Female)
contact material:Phosphor Bronze
contact plating:Gold
current rating:3 A
Дата загрузки26.03.2024
eccn (us)EAR99
eu rohsCompliant
factory pack quantity: factory pack quantity:40
genderSKT
housing material:Polybutylene Terephthalate(PBT)
insulation resistance:1000 MOhms
insulation resistance (mohm)1000
категорияКнопки, переключатели, разъемы, реле/Разъемы
manufacturer:Omron
mating cycle (cycles)50
maximum contact resistance (mohm)20
maximum current rating (a)3
maximum operating temperature:+105 C
maximum operating temperature (°c)105
maximum voltage rating300VAC
minimum operating temperature:-55 C
minimum operating temperature (°c)-55
mountingThrough Hole
mounting angle:Straight
mounting style:Through Hole
number of contacts50
number of positions:50 Position
number of rows2
number of rows:2 Row
партномер8005129215
part # aliases:XG4H5031
part statusActive
pitch:2.54 mm
polarization typeCenter Key
ppapNo
product:Flat Cable Connectors
product category:Rectangular MIL Spec Connectors
product type:Rectangular MIL Spec Connectors
row spacing (mm)2.54
series:XG4
subcategory:MIL-Spec/MIL-Type
terminal pitch (mm)2.54
termination methodSolder
termination style:Solder Pin
typeSocket Strip
вес, г14
voltage rating:300 V
Время загрузки2:19:11
