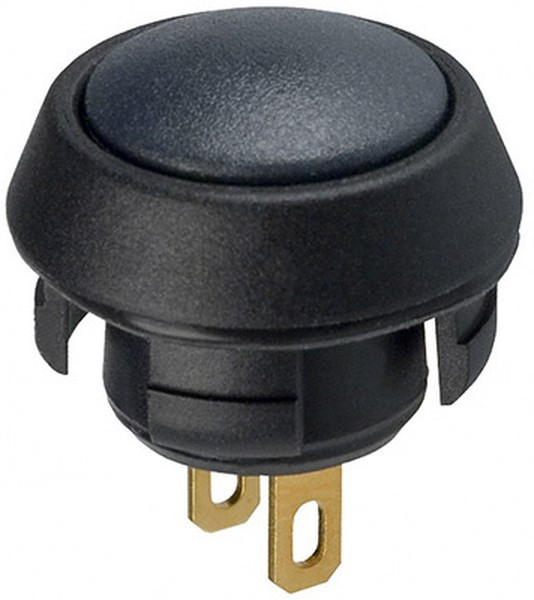

Реле и Переключатели\Переключатели\Кнопочные ПереключателиКнопочный переключатель SPST-NO Стандартный монтаж на панели, защелкивающийся
Информация о производителе | |
Производитель | Grayhill |
Бренд | Grayhill |
Основные | |
actuator color | Black |
actuator style | Round Button |
actuator type | Round, Button |
automotive | No |
base material | Glass/Nylon |
body orientation | Straight |
circuit | SPST-NO |
color - actuator/cap | Black |
contact configuration | SPST |
contact current rating | 150 mA |
contact material | Gold Plated Nickel Brass |
current rating (amps) | 150mA (DC) |
Дата загрузки | 11.03.2024 |
dielectric strength | 1000VAC |
eccn | EAR99 |
eccn (us) | EAR99 |
electrical life | 500,000 Cycles |
electrical life (cycles) | 500000 |
features | Sealed - Fully |
housing material | Glass/Nylon |
htsus | 8536.50.9031 |
illuminated | No |
категория | Кнопки, переключатели, разъемы, реле/Переключатели |
maximum contact resistance (mohm) | 25 |
maximum current rating (a) | 0.15@24VDC |
maximum operating temperature (°c) | 80 |
mechanical life | 500,000 Cycles |
minimum insulation resistance (mohm) | 1000 |
minimum operating temperature (°c) | -40 |
moisture sensitivity level (msl) | 1 (Unlimited) |
mounting | Panel Mount |
mounting type | Panel Mount, Snap-In |
number of rows | 1 |
number of terminals | 2 |
operating temperature | -40В°C ~ 80В°C |
package | Bulk |
panel cutout dimensions | Circular - 15.20mm Dia |
партномер | 8005646069 |
part status | Active |
pole throw configuration | SPST |
ppap | No |
reach status | REACH Unaffected |
rohs status | RoHS Compliant |
seal description | O-Ring/Silicon Rubber |
seal location | Panel/Internal |
series | 30 -> |
switch configuration | N.O. |
switch function | Off-Mom |
switch operation | Momentary |
terminal pitch (mm) | 2.54 |
terminal type | Snap-In |
termination style | Solder Lug |
type | Standard |
вес, г | 2 |
voltage rating | 24V dc |
voltage rating - dc | 24V |
Время загрузки | 13:11:12 |
