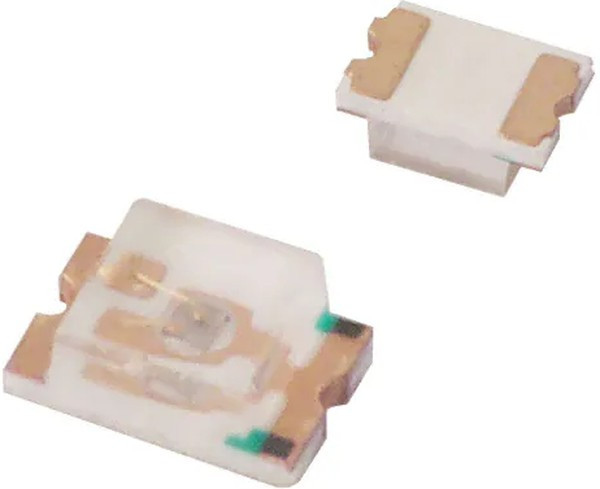

LTST-C171KSKT, Standard LEDs - SMD Yellow Clear 587nm
Оставить отзыв
В избранноеВ сравнение
Артикул: LTST-C171KSKT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Optoelectronics\LED Lighting\LED Emitters\Standard LEDs - SMDЖелтая светодиодная индикация 587 нм - дискретный 2V 0805 (2012 метрическая система)
| Основные | |
| Производитель | Lite-on Electronics |
| Бренд | Lite-on Electronics |
| Информация о производителе | |
| automotive | No |
| color | Yellow |
| configuration | Standard |
| current - test | 20mA |
| Дата загрузки | 09.05.2024 |
| длина волны,нм | 587 |
| dominant wavelength | 587 nm |
| eccn | EAR99 |
| factory pack quantity: factory pack quantity: | 3000 |
| forward voltage | 2.4 V |
| height (max) | 0.90mm |
| high brightness | No |
| high power | No |
| htsus | 8541.40.2000 |
| if - forward current | 20 mA |
| if - forward current: | 30 mA |
| illumination color | Yellow |
| intensity | 180mcd(Max) |
| категория | Оптоэлектроника/Светодиоды видимого спектра |
| led colours | Yellow |
| led material | AlGaInP |
| lens appearance | Colorless Non Diffused |
| lens color | Colorless |
| lens color/style | Water Clear |
| lens colour | Clear |
| lens dimensions: | 1.4 mm x 1.25 mm |
| lens shape | Rectangular |
| lens shape: | Rectangular |
| lens shape type | Rectangular |
| lens size | 1.40mm x 1.25mm |
| lens style | Rectangle with Flat Top |
| lens transparency | Clear |
| lens transparency: | Water Clear |
| luminous intensity | 60 mcd |
| luminous intensity: | 60 mcd |
| manufacturer | Lite-On |
| manufacturer: | Lite-On |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| millicandela rating | 50mcd |
| minimum operating temperature | -55 C |
| minimum operating temperature: | -55 C |
| moisture sensitive: | Yes |
| moisture sensitivity level (msl) | 2A (4 Weeks) |
| mounting orientation | Top Mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of leds | 1 |
| number of pins | 2 |
| operating temperature - (??c) | -55~85 |
| orientation | Top View |
| orientation: | Top View |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | 0805 (2012 Metric) |
| package / case: | 0805(2012 metric) |
| package type | 2012(0805) |
| packaging | Cut Tape or Reel |
| партномер | 8004651174 |
| peak wavelength | 588 nm |
| pin count | 2 |
| power rating | 75 mW |
| power rating: | 75 mW |
| product | Yellow LEDs |
| product: | Yellow LEDs |
| product category | Standard LEDs-SMD |
| product category: | Standard LEDs-SMD |
| product type | LED-Standard |
| product type: | LED-Standard |
| rohs status | ROHS3 Compliant |
| series | CHIP LED 0805 |
| size / dimension | 2.00mm L x 1.25mm W |
| standard package name | Chip LED |
| subcategory | LEDs |
| subcategory: | LEDs |
| supplier device package | Chip LED |
| supplier package | Chip LED |
| вес, г | 0.04 |
| vf - forward voltage | 2 V |
| vf - forward voltage: | 2 V |
| viewing angle | 130В° |
| viewing angle: | 130 deg |
| voltage - forward (vf) (typ) | 2V |
| Время загрузки | 23:44:02 |
| wavelength/color temperature | 587 nm |
| wavelength - dominant | 587nm |
| wavelength - peak | 588nm |
