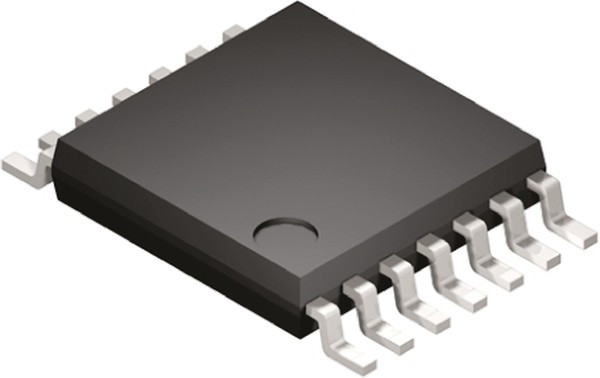

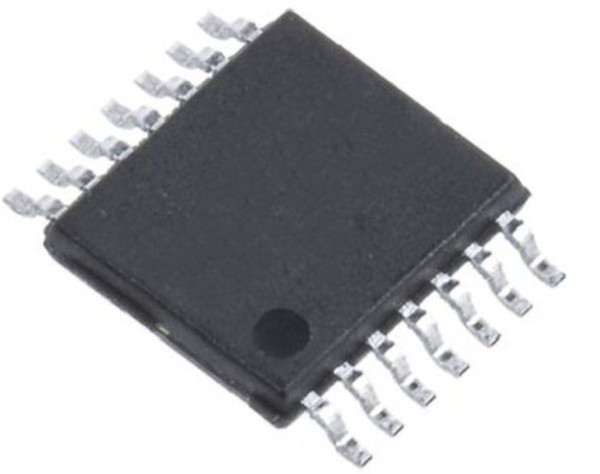

74LCX74MTCX, IC: цифровая; D триггер; Ch: 2; LCX; SMD; TSSOP14; бобина,лента
Оставить отзыв
В избранноеВ сравнение
Артикул: 74LCX74MTCX
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Advanced High-Speed (low-voltage) CMOS Logic Operating Voltage Range: 2.0 to 3.6V 5V tolerant inputs & outputsundefined
Информация о производителе | |
Производитель | ON Semiconductor*** |
Основные | |
Дата загрузки | 07.07.2023 |
Бренд | ON Semiconductor*** |
Вес и габариты | |
factory pack quantity: factory pack quantity: | 2500 |
function: | Dual D-Type Flip-Flop |
high level output current: | -24 mA |
input type: | Single-Ended |
категория | Электронные компоненты/Микросхемы |
logic family | LCX |
logic family: | 74LC |
logic function | D Type |
logic type: | D-Type Edge Triggered Flip-Flop |
low level output current: | 24 mA |
manufacturer: | onsemi |
maximum operating supply voltage | 3.6 V |
maximum operating temperature | +85 °C |
maximum operating temperature: | +85 C |
maximum propagation delay time @ maximum cl | 8ns |
minimum operating supply voltage | 2 V |
minimum operating temperature | -40 °C |
minimum operating temperature: | -40 C |
mounting style: | SMD/SMT |
mounting type | Surface Mount |
number of channels: | 2 |
number of circuits: | 2 |
number of elements per chip | 2 |
number of input lines: | 4 |
number of output lines: | 2 |
operating supply voltage: | 2 V to 3.6 V |
output type | 3 State |
output type: | Differential |
package / case: | TSSOP-14 |
package type | TSSOP |
packaging: | Reel, Cut Tape, MouseReel |
партномер | 8017544426 |
part # aliases: | 74LCX74MTCX_NL |
pin count | 14 |
polarity | Inverting, Non-Inverting |
polarity: | Inverting/Non-Inverting |
product category: | Flip Flops |
product type: | Flip Flops |
propagation delay test condition | 50pF |
propagation delay time: | 8 ns |
quiescent current: | 10 uA |
reset type: | Set, Reset |
series: | 74LCX74 |
set/reset | Yes |
subcategory: | Logic ICs |
supply voltage - max: | 3.6 V |
supply voltage - min: | 2 V |
triggering type | Positive Edge |
вес, г | 0.2 |
width | 4.4mm |
