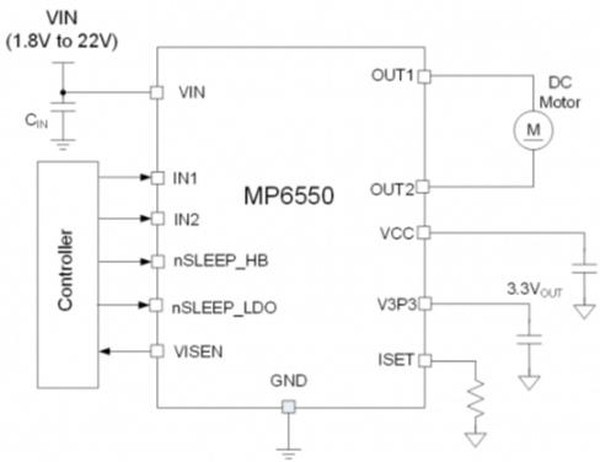

MP6550GG-P, Motor / Motion / Ignition Controllers & Drivers 1.8V -22V, 2A H-bridge motor driver

• H-bridge motor driver in 12 pin QFN package• 2A continuous driver current• 240mohm MOSFET on-resistance (HS + LS)• Cycle-by-cycle current regulation/limit• Built-In 3.3V reference output• PWM input Interface, compatible with industry standard devices up to 100KHz• Low standby circuit current, thermal shutdown, internal charge pump• Cycle-by-cycle overcurrent protection, short-circuit protection• Four N-channel power MOSFETs and an internal charge pump• Typically used to drive a DC brush motor
